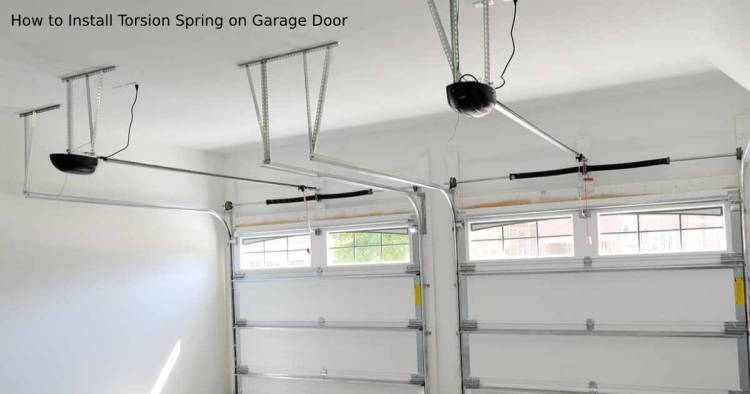

How to Install Torsion Spring on Garage Door
The Doors are a very important component for any house or garage. It also increases the crab appeal of your residential garage. We use the door to come and exit our home every day. The home furnishings garage door also shares a similar purpose. Safety and security from external factors. As we have often seen, the garage door protects your cars and vehicles well. Such as prevents the bicycle from bathing under the sun's scorching heat. And the bitter cold of winter. It covers your home, garages any bulgur activities. So, when we give compulsion to such an important thing and need to make it easy to open. From this blog, we will learn how torsion springs overhead garage doors are and how they work.
Difference Between Torsion Springs and Extension Springs?
The 2 primary types of garage door springs in the market are extension and torsion springs. Both types of springs must meet the DASMA Standard of a 10000-cycle life. Into the job of counterbalancing the garage door just in different ways.
Extension springs counterbalance. The sectional garage door by the expansion and contraction of the spring. The extension spring has looped ends for mounting. It supports and attachment for pully and cable assembly.
Most of the company sells the extension springs with the variety of different ends on them. Including single open loops, double looped ends, and clipped ends. In comparison, the double-looped and clipped ends are sturdier and more durable than and open looped end. They are also more difficult to replace.
There are also specific extension springs. That are made for one piece of door applications. These are the doors that swivel and pivot open versus a sectional door that overhead. Extension springs follow the DASMA color coding. It relates to the pounds that the spring can carry.
The different color-coding used for torsion springs, which is based on the spring's wire size.
Extension springs follow the DASMA color coding. It relates to the pounds that the spring can carry. The different color-coding used for torsion springs, which is based on the spring's wire size. The spring manufacturers print the wire size and length of the spring on the stock springs.
A traditional torsion spring is fitted with two cones a winding cone and a stationary cone. Unlined how extension springs expand and contract to raise a garage door. The torsion spring gets wound, and the countersigns are what help to balance and move the door.
What is Torsion Springs of Garage Doors?
Torsion springs are a backbone of hanging garage access. Most homeowners have at least a knowledge of what they are and what they do. You know that the torsion spring sits on top of its parallel door and lowers. The door by uncoiling and coiling, respectively. They also know that torsion springs store large amounts of energy passes. When it coiled and thus are extremely dangerous to operate in and around. But most homeowners are not aware that. There are 2 main types of torsion springs. The oil temperature and zinc galvanized, and both have their advantages and disadvantages.
How to install Torsion Spring and Assembly Adjustment
This blog is a supplement to the residential garage door installation. We have covered the installation of torsion spring use this blog if you are installing a torsion spring with your garage door.
Note – Important Safety information: Spring under tension is dangerous. Make sure to follow all the safety warnings in the user manual of the spring installation. Exercise caution when working with tension springs.
Materials needed for Torsion Spring Installation:
- Bring solo 7/16" socket wrench
- Locking Pliers
- Bring 2 9/16" box wrenches.
- Wood Anchor Pad
- Bring 2 half diameter, 18'' long cold rolled strong steel winding bars.
There are several steps to follow for installation of Torsion spring.
Step 1 - Fixing the door frame.
The torsion spring adjustment must be tightly and securely connected to the garage frame.
You can refer to the below image, which needs 2" x 6" wood jambs.
Important: The wood anchor block must be made of Class 2 or more solid austral yellow pine. Other satisfactory varieties of wood for this reinforcement are beech, birch, hickory, and oak.
The wood necessity is free of cracks and notches. Do not use wood designated as spruce pine fir.
All side jamb and the centre anchor pad should spread 12" high. The top of the opening for 12" radius horizontal track. And 15" above the top of the door for a 15" radius flat track.
The wood anchor rest should be appended to the garage casing. Within any event four 3/8" x 4" long slack screws for wooden edges or four 3/8" x 4" long sleeve secures for solid edges. The 4 latches should be introduced no nearer than 1-1/2" from the sides and the anchor cushion's closures. These latches should be installed into the casing of the garage. But not the drywall or sheetrock. The wood anchor pad and clasp are not provided. Try not to use nails.
Step 2 - Join the torsion springs to the durable spring tube
Safety Warning: Securely lock the door in the down position using the door lock or locking pliers. This helps to stop the door from opening prematurely, which may cause injury.
If your residence garage has only one entrance, make sure that you, the assistants, and the equipment you need are inside before closing the door.
Your door will have one or two torsion springs. Each torsion spring consists of a spring coil, a stationary cone, and a curved cone.
The spring coil color is coded based on the spring-code, and the curved cone is coded separately, either red or black. The paint on the curved cone helps identify which door the spring is to be used on.
If you use black curved cone torsion springs to the door's right and red curved cone torsion springs to the left of the door.
When the door is inspected from the inside out, failure to install torsion springs on the right side will cause your door to malfunction and result in serious injury.
Step 3 - Connect mounting plates to garage doorway frame.
Secure the base of the end carrying plate at a parallel angle with 3/8 "x 3/4" long hex head bolts and hex nuts. The future is identified by 2 parallel rows of 2 slots under the bearing plate. Please be sure to use the bottom 2 places for the 12 "radius horizontal track and the upper 2 slots for the 15" radius horizontal track. When adequately mounted, the torsion tube is level and straight.
Prior to introducing any slack screws, it is critical to penetrating 3/16" pilot openings where the slack screws are to be connected. Secure the divider spine on end bearing plate to the wood support with (1) 5/16" x 1-5/8" long slack screw. Drill 3/16" pilot openings where slack screws are to be introduced. On 12" span level track, each end having plate should be appended with 3/8" x 3/4" carriage screws and 3/8" nuts.
Step 4 - Connect congregated torsion springs to mounting bases
With a colleague, lift the whole bend spring tube assembly and slide the cylinder's end into the bearing on the end bearing plates. With the cylinder level, mount the middle bearing plate using the moderate anchor pad (2) 5/16 "x 1-5 / 8" long flat, red-cover screws. Red-headed latches should be introduced to connect the middle bearing plate to show this part after a spring-wound happens.
These scout openings ought not to be more like 1-1/2" from the edges and finishes of the wooden anchor cushions. The middle bearing plate opposes the special counter force of the springs. This wooden anchor cushion ought to be introduced in the carport outline.
Step 5 - Fix torsion spring cables.
You can very carefully fix the torsion spring cables because this cable is attached to every bottom bracket brought up between the garage wall and shafts to the cable drum.
Step 6 - Connect torsion spring with winding rods
To increase the twist cause strain, the entryway is secured in the down position. With locking pincers on the twist spouts, bent bars are utilized to wind the springs tight to expand strain. The strain is decreased by eliminating the turn.
Application of Torsion Spring for Different Types of Garage Building Materials.
Your garage is made of vinyl, metal, wood. A garage door is a must for all types of garage building materials. If you are planning to install metal buildings, you can install the garage's torsion spring doors in metal building kits also.
